EasyAir

The new modular facade system easy-to-install, lightweight and secure

Standard size

Standard size

Easy to install

Easy to install

Lightweight

Lightweight

Resistant to bending

Resistant to bending

Resistant to thermal shock

Resistant to thermal shock

EasyAir: the easy-to-install, lightweight, and secure cladding system

GammaStone is synonymous with creativity and excellence, qualities stemming from our experience in manufacturing integrated panels for facade systems. Thanks to our fully automated robotic production, we ensure a certified, versatile, and high-quality complete enclosure service.

Our new high-performance product, EasyAir, aims to bring our patented and innovative technology, previously dedicated only to large buildings, into every home. EasyAir is designed for both interior and exterior applications and can be tailored to meet any requirement through custom cutting during installation. It is also easy to install with our specially designed dry hanging system.

EasyAir - GammaStone

Air Technology

EasyAir is made with the innovative patented GammaStone Air system, which is the main strength of our products. They are created using innovative technologies that make them extremely lightweight. Our panels exhibit high resistance to impact, bending, and compression, and they stand out for their thermal and acoustic efficiency. EasyAir can be manufactured using natural stone and UHPC (Ultra High-Performance Concrete), an advanced solution that ensures high-performance standards and unparalleled aesthetic beauty.

Natural Air

GammaStone Natural Air in Limestone is our customized solution for EasyAir, allowing the creation of natural stone panels for both indoors and outdoors in any type of building. This solution bestows buildings with timeless beauty that exudes grandeur and sophisticatio.

EasyAir - GammaStone

Limestone Gray

EasyAir - GammaStone

Limestone Beige

EasyAir - GammaStone
EasyAir - GammaStone

UHPC Ultralight

GammaStone Ultralight is an innovative, lightweight solution that provides a cost-effective and high-performance alternative to aluminum panels and GFRC. With a panel thickness of just 14mm, Ultralight is specifically designed to integrate seamlessly with the EasyAir system. Our UHPC (Ultra-High Performance Concrete) offers exceptional strength and outstanding flexibility, ensuring resilience against all types of natural stress. For EasyAir, we have selected eight UHPC Ultralight Plain colors, each designed to make any structure truly unique and inimitable.

Plain
EasyAir - GammaStone

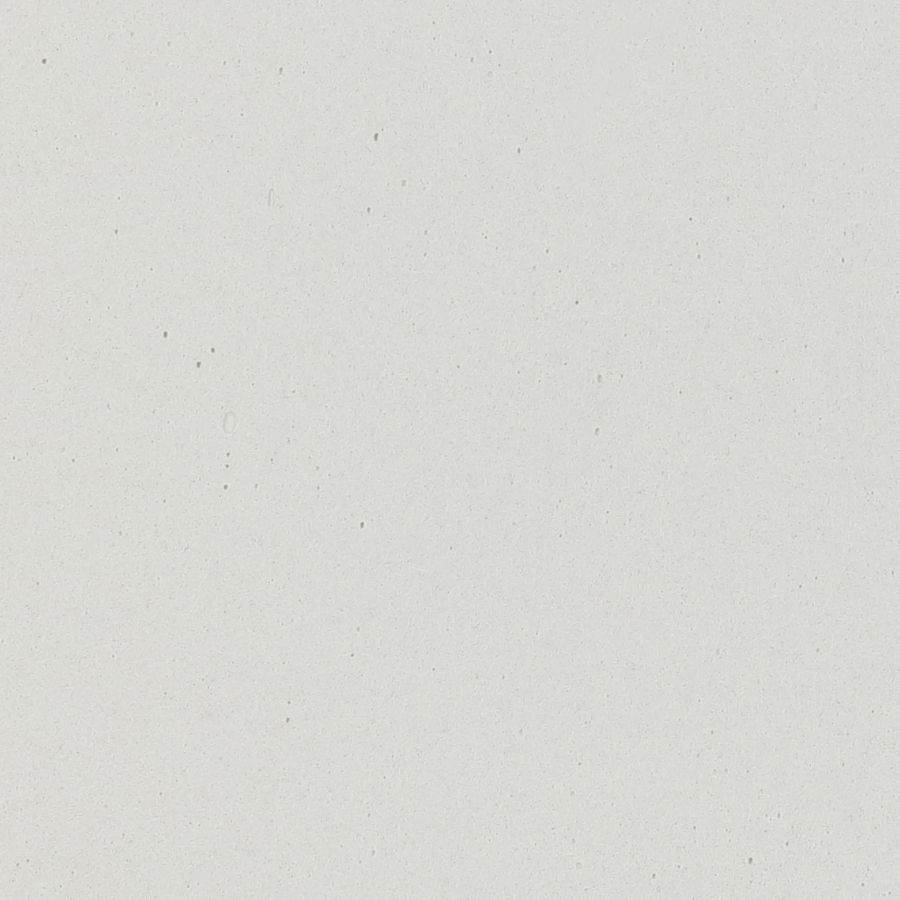

Bianco

EasyAir - GammaStone

Crema

EasyAir - GammaStone

Grigio Urbano

EasyAir - GammaStone

Giallo Imperiale

EasyAir - GammaStone

Verde Salvia

EasyAir - GammaStone

Terracotta

EasyAir - GammaStone

Rosso Mattone

EasyAir - GammaStone

Marrone Gesso

EasyAir

Technical data

Natural Air

Total Thickness

17 mm

Stone Thickness

6 mm

Weight

25 kg/m²

Natural Air

Total Thickness

43/64''

Stone Thickness

15/64''

Weight

5.1 lb/sqft
EasyAir - GammaStone
EasyAir - GammaStone

UHPC Ultralight

Total Thickness

14 mm

UHPC Utralight Thickness

3 mm

Weight

14 kg/m²

UHPC Ultralight

Total Thickness

9/16''

UHPC Utralight Thickness

1/8''

Weight

2.8 lb/sqft
EasyAir - GammaStone
EasyAir - GammaStone

Video

Size and monolithic elements

EasyAir panels are versatile and flexible for various applications, thanks to the numerous standard sizes we produce, including angular variants of monolithic architectural elements, to meet a wide range of aesthetic and functional buildings requirements.

EasyAir - GammaStone
Panels
EasyAir - GammaStone
EasyAir - GammaStone
EasyAir - GammaStone
EasyAir - GammaStone
External corners
EasyAir - GammaStone
EasyAir - GammaStone
EasyAir - GammaStone
EasyAir - GammaStone
Internal corners
EasyAir - GammaStone
EasyAir - GammaStone
EasyAir - GammaStone
EasyAir - GammaStone

Fixing system

EasyAir - GammaStone

Kit Anchors

The external installation system includes a clip, four plates to connect the panel to the floor, and another to connect the panels together.

EasyAir - GammaStone

A - EasyClip

EasyAir - GammaStone

B - Support plate horizontal 2 flaps

EasyAir - GammaStone

B - Support plate horizontal 2 flaps

EasyAir - GammaStone

C - Support plate horizontal 4 flaps

EasyAir - GammaStone

D - Support plate vertical 1 flap

EasyAir - GammaStone

E - Support plate vertical 2 flaps

Technical details

The outdoor installation system must be hooked up following the information below.

Installation guide

Thanks to the performance of our system, EasyAir is extremely versatile. In fact, there are many applications for which it is suitable. The outdoor installation system includes a plate to join the panel to the attic and one to connect the panels to each other.

EasyAir - GammaStone

Advantages

EasyAir - GammaStone

A

Perfect alignment of the joints
The alignment of the joints is given and fixed by the
use of ‘support plates’ that uniquely define the joints
themselves.

EasyAir - GammaStone

B

Non sequential installation
Non-sequential panel installation is possible due to
the independent EasyClip fixing system.

EasyAir - GammaStone

C

Independent removal
Thanks to the EasyClip fastening system,
it’s possible to remove the individual panel
independently of its position.

Typical details

EasyAir - GammaStone

Horizontal Section

EasyAir - GammaStone

Vertical Section

EasyAir - GammaStone

External Corner

EasyAir - GammaStone

Internal Corner

Fixing system

EasyAir - GammaStone

Kit Anchors

The indoor installation system is characterized by a single plate that is fixed directly to the wall using high-strength screws, guaranteeing durability and aesthetic value.

EasyAir - GammaStone

A - EasyPlate (base support wall)

EasyAir - GammaStone

B - EasyPlate (base panel)

EasyAir - GammaStone

C - EasyPlate (panel top side)

EasyAir - GammaStone

D - EasyPlate (panel bottom side)

EasyAir - GammaStone

Attachment with front view

EasyAir - GammaStone

Attachment with side view

Technical details

The indoor installation system must be hooked up following the information below.

Typical details

EasyAir - GammaStone

Horizontal Section

EasyAir - GammaStone

Vertical Section

EasyAir - GammaStone

External Corner

EasyAir - GammaStone

Internal Corner

Product Sheet

Download and browse the Product Sheet to discover the available surface standards. The weights, the technical data, the measurements, the certifications: all the details functional to the inclusion of this project's solution.
